Telair EcoEnegy 480/480MEF/600MEF 20-25A LPG Generator

View Options

The Teleir ECOEnergy Gas Generators provide an effective and quicky way of getting power when off hook up or to simply charge your battery bank. The Telair ECOEnergy TG480 MEF Generator can provide up to 20A/h of power at 12v at a moments notice either by a user request or alternatively you can leave it on automatic and the system will start up and provide power automatically

All fitting charges are subject to survey

Out of stock

Categories: ,

Description

The Teleir ECOEnergy Gas Generators provide an effective and quicky way of getting power when off hook up or to simply charge your battery bank. The Telair ECOEnergy TG480 MEF Generator can provide up to 20A/h of power at 12v at a moments notice either by a user request or alternatively you can leave it on automatic and the system will start up and provide power automatically (minimum battery voltage threshold is 11.9v).
The Telair ECOEnergy Generators run from a gas supply that is regulated to 30mBar (+/-2mBar) and uses approx 0.27KG of Gas per-hour.

Power is generated from a gas-fueled two-stroke engine that also has a tank containing oil that is also consumed when running.

There are various mounting brackets and options available for this system.

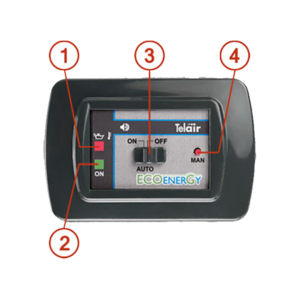

Teleir ECOEnergy Generator Control Panel:

Telair EcoEnegy 600MEF 25A LPG Generator
Telair EcoEnegy 600MEF 25A LPG Generator



  1. * High temperature and low oil level indicator light – Red warning light
  2.    indicates either the oil level is too low or temperature is too high – in
  3.    both cases the motor will shut down and will not start.
  4. * Generator working light – to show the unit is working.
  5. *  Switch to control whether or not the system will start when there is low
  6.     power automatically.
  7. *  Manual start button.

Telair ECOEnergy Generator Specification Table

Technical Feature TG 480 TG 480 MEF TG 600 MEF
Automatic Operation Start 11.9V
Stop 14.5v		 Start 11.9V
Stop 14.5v		 Start 11.9V
Stop 14.5v
Working temperature Propane Gas 50°C to -25°C 50°C to -25°C 50°C to -25°C
Rated current 20Ah 20Ah 25Ah
Gas Pressure 30mBar (+/- 2mBar) 30mBar (+/- 2mBar) 30mBar (+/- 2mBar)
Approx Gas Consumption 0.27KG/H 0.27KG/H 0.29KG/H
Starting Current 15A
(0.15 sec)		 15A
(0.15 sec)		 18A
(0.15 sec)
Oil Consumption 1 Litre / 115 Hours 1 Litre / 115 Hours 1 Litre / 115 Hours
Noise Level (7m) 51dBA 51dBA 52dBA
Weight 19KG 19KG 19KG
Dimensions (with out brackets) 565x380x250 mm 565x380x250 mm 565x380x250 mm
Battery Bank Size 160 to 300Ah 160 to 300Ah 160 to 300Ah
High Altitude operation – telair ecoenergy 12v gas powered generator telair ecoenergy 12v gas powered generator
Connection Cable Length (for control panel) 5m 5m
